A New Dry Nut Roaster born of an all-new platform for Seamless Performance.
MACH Mikropoulos introduces you for the very first time to the TX3-100.
A Fully Electric Dry Nut Hot Air Roaster, for where the Electricity is the only, or the cheapest option.
A unique design of a Dry Nut Roaster that combines all the advantages and benefits of Hor air Roasting with the Electricity.
50% more efficient in comparison with TH3-100 and TH3-150 models.
With indirect Electrical Heating technology, delivering power and stability, when it is needed, and connecting roasting temperature to the dry nuts with Intuitive control by wire. Ideal for roasting and drying all kinds of Dry nuts, peanuts, seeds, and snacks.
The Hot Air Tunnel Type Dry Nut Roaster provides uniform heat and air distribution throughout the whole roasting chamber, providing unique roasting color and final results such as taste, moisture, and look.
Designed for Roasting all kinds of dry nuts such as peanuts, almonds, pistachios, hazelnuts, cashews, macadamia nuts, sunflower, and pumpkin seeds.
The Hot Air Roaster has an increased airflow rate, allowing for higher rates of efficiency. Always keeping in mind that an oven needs to be cleaned as fast as possible, Belt Cleaning System, access Doors around the Roasting chamber, slides, water drains, residual collection points, provide the operator with the full and fast as possible cleaning process of the Hot Air Roaster. Uniform airflow increases product quality.
In our Hot Air Dry Nut Roaster, you can find a unique airflow design to ensure uniform roasting across the levels of conveyor belts, producing a uniform and stable roasting process. Airflow is delivered both above and below the product layer, enhancing moisture removal and roasting characteristics while minimizing processing time. Adjustable feeding equipment inside the roasting chamber, in order to deter the loss of hot air from the roasting chamber and as a result to gain energy and to achieve less consumption. Fully adjustable, at any time for optimal performance. The Hot Air Dry Nut Roaster is designed to cover all the specific heat treatment features of each product. The operator can adjust feed parameters, belt’s speed, roasting chamber’s temperature, amount of recirculation air, at any time to suit each dry nut individually and provide optimum performance. MACH Mikropoulos can provide fully automatic roasting lines with a unique control panel. Touch screen with PLC unit and built-in modem router, linked through Internet straight with our company for 24h service, available. Furthermore, our control panel is programmable in order to set the parameters of your choice for each kind of dry nut. Sanitary Design Available, unstoppable operation.
Our theory is that if it can be seen, it can be cleaned. Doors around the roasting chamber provide access to the entire interior. With external doors open, all areas of the roaster can be accessed for sanitation. Without any hide points, we minimize the risk of bacterial or fire growth.
Almost Fully assembled, minimum installation costs. As the Hot Air Dry Nut Roaster shipped almost fully assembled , the installation time is the minimum possible and as a result the least expensive.
A complete roasting line that consists of a Mixer, a Bucket Elevator, the Roaster and the Cooler.
- Some of the advantages:
Doors all around the Roaster.
Full access Everywhere for Sanitation
Unique Hot-Air distribution system
Built in Floor Drain for Sanitary Wash Down
Fully Adjustable Roasting Air
Built in, smoke absorption system

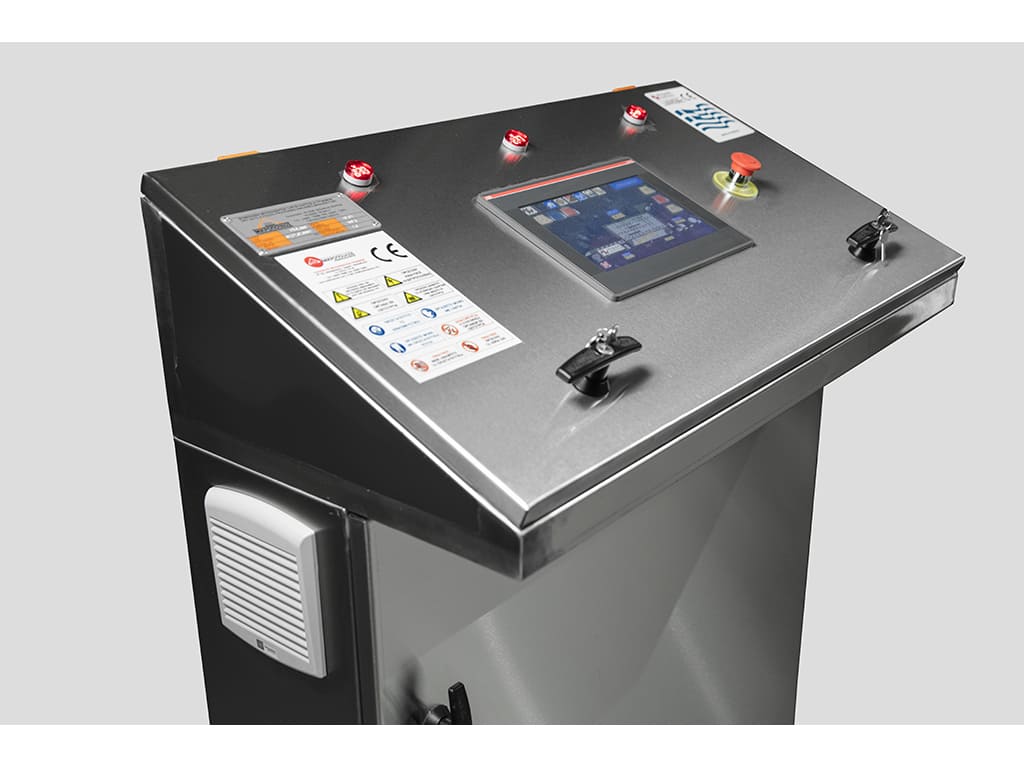

Central control panel, placed in any free, available place
Cooler that Cools down the already roasted product, up to room's temperature.
Precise control of Product Quality, Flavor and Moisture
2 mixing points during the roasting process.
Simple & Efficient operation.
One Roasting chamber One Roasting zone
Direct drive of movement
TECHNICAL SPECS TX3-100
Type | Production | Total Electric Power | Electrical Consumption | Width | Length | Height |
TX3 - 100 | 80- 180Kg/h | 43 kW, in 3 phases 400 Volt 50Hz | 18 kW/h | 1.5m | 7.0m | 2.9m |
Capacities per product
Hazelnut | 180Kg/h |
Pistachio | 140Kg/h |
Almond | 120Kg/h |
Peanuts | 120Kg/h |
Sunflower Seeds | 100Kg/h |
Pumpkin Seeds | 100Kg/h |
Peanut in Shell | 80Kg/h |
